When businesses need to reach audiences from multiple directions, the Double-Sided LED Display from Allenson provides a practical way to maximize advertising visibility without installing two separate display systems. Designed for outdoor commercial environments, this solution combines independent two-sided content, high brightness, weather resistance, flexible installation, and efficient digital content management.
A Double-Sided LED Display is designed to show digital content on both viewing surfaces, allowing advertisers, retailers, commercial districts, transportation facilities, and public venues to communicate with audiences approaching from different directions. Allenson's solution uses a P6 pixel pitch, 1R1G1B full-color configuration, up to 5000 cd/m² brightness, a refresh rate of at least 1200 Hz, 140° horizontal and vertical viewing angles, and IP65 protection. Its two-sided independent control makes it particularly useful for suspended advertising, street-side pole signage, shopping malls, parking areas, scenic attractions, and exhibition spaces.
Table of Contents
- What Is a Double-Sided LED Display?
- How Is a Double-Sided LED Display Designed?
- What Are the Main Advantages?
- What Technical Specifications Should Buyers Consider?
- Where Can Double-Sided LED Displays Be Used?
- How Should Businesses Choose the Right Display?
- Why Consider Allenson for a Double-Sided LED Display?
- Frequently Asked Questions
- Conclusion

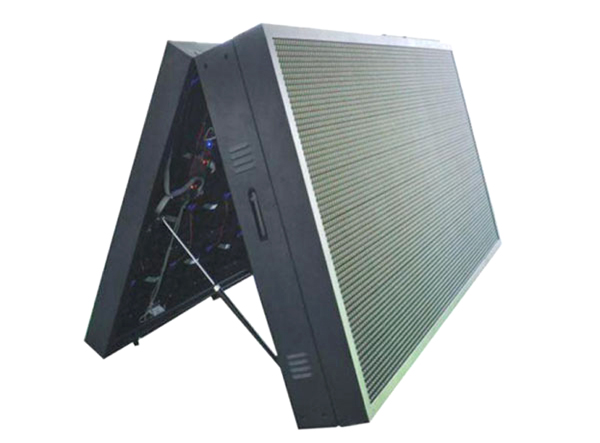

What Is a Double-Sided LED Display?
A Double-Sided LED Display is a digital signage system that incorporates LED modules on two opposite viewing surfaces. Unlike a conventional single-sided LED screen, it can communicate with people approaching from different directions while occupying only one installation position.
This design is especially valuable in areas where pedestrian and vehicle traffic flows around a central location. A suspended display in a shopping mall, for example, can show one promotional campaign toward one walkway while displaying different content toward another. Similarly, a roadside pole-mounted display can communicate business information to road traffic on one side and pedestrians or vehicles traveling in the opposite direction on the other.
Allenson's model uses a P6 pixel pitch and 1R1G1B full-color pixel configuration. This provides a balance between viewing distance, image quality, and outdoor advertising performance. The display can also be configured for independent content control, giving operators greater flexibility in managing messages.
How Is a Double-Sided LED Display Designed?
The structure of a professional Double-Sided LED Display needs to balance visual performance, mechanical strength, weight, heat management, and outdoor protection. Allenson's design uses standardized modules and cabinets to support practical installation and maintenance.
Each LED module measures 192 × 192 mm, while the standard cabinet measures 960 × 960 mm. Cabinet materials can include steel, aluminum alloy, or die-cast aluminum depending on project requirements. A single cabinet weighs approximately 35–40 kg, helping keep structural load requirements manageable for suspended and pole-mounted installations.
The two LED surfaces can operate independently. This means operators do not necessarily need to display identical content on both sides. One screen can present a brand advertisement while the opposite side provides a different promotion, directional information, schedule, or public message.
- Dual viewing surfaces: Enables communication in two directions.
- Independent content control: Different messages can be displayed simultaneously.
- Modular construction: Standardized modules simplify assembly and maintenance.
- Multiple cabinet materials: Steel, aluminum alloy, and die-cast aluminum options are available.
- Flexible installation: Supports suspended and pole-mounted configurations.
What Are the Main Advantages?
1. Greater Advertising Exposure
The most obvious advantage is the ability to communicate with audiences from two directions. Instead of installing two independent displays, one dual-sided structure can cover both sides of a traffic flow.
2. Independent Content Management
Independent screen control gives businesses greater freedom when planning campaigns. Different advertisements, promotions, directional information, or branding messages can be assigned to each side according to the audience facing that screen.
3. High Outdoor Visibility
Outdoor digital signage must remain readable under challenging lighting conditions. Allenson's Double-Sided LED Display offers brightness of up to 5000 cd/m², helping displayed images remain vivid under strong daylight. A contrast ratio of up to 3000:1 further supports visual clarity.
4. Wide Viewing Coverage
With horizontal and vertical viewing angles of approximately 140°, the display can remain visible to audiences positioned across a broad viewing area. This is useful for open spaces such as commercial atriums, streets, parking facilities, and public plazas.
5. Outdoor Protection
An IP65 protection rating helps protect the display against dust and water exposure, making the system suitable for outdoor environments where rain, snow, and airborne particles may affect electronic equipment.
6. Reduced Equipment Footprint
Because both sides are integrated into one display structure, businesses can potentially reduce the number of support structures, installation points, and physical devices required to cover the same directions.
What Technical Specifications Should Buyers Consider?
When purchasing a Double-Sided LED Display, buyers should evaluate more than screen size alone. Pixel pitch, brightness, refresh rate, viewing angle, cabinet construction, protection rating, power consumption, and installation requirements all influence long-term performance.
| Specification | Allenson Double-Sided LED Display | Why It Matters |
|---|---|---|
| Pixel Configuration | 1R1G1B | Supports full-color image reproduction |
| Pixel Pitch | 6 mm | Suitable for outdoor viewing distances |
| Module Dimensions | 192 × 192 mm | Supports modular assembly |
| Cabinet Dimensions | 960 × 960 mm | Provides standardized installation |
| Cabinet Weight | 35–40 kg | Helps simplify structural planning |
| Contrast Ratio | Up to 3000:1 | Improves image definition |
| Refresh Rate | ≥1200 Hz | Supports smooth visual content |
| Brightness | ≥5000 cd/m² | Enhances outdoor daytime visibility |
| Viewing Angle | 140° Horizontal / 140° Vertical | Expands the effective viewing area |
| Power Consumption | 250 W/m² | Supports energy-conscious operation |
| Protection Rating | IP65 | Provides protection against dust and water |
These specifications make the display suitable for applications where visibility, outdoor durability, and two-direction communication are essential.
Where Can Double-Sided LED Displays Be Used?
The flexible structure of a Double-Sided LED Display allows it to serve both advertising and information-display purposes. Common applications include:
- Shopping malls: Suspended displays can reach customers approaching from different walkways.
- Commercial districts: Digital advertisements can be positioned above busy pedestrian areas.
- Street-side signage: Pole-mounted displays can communicate with traffic moving in opposite directions.
- Parking facilities: One side can provide directional information while the other displays operational messages or advertisements.
- Scenic attractions: Tourism promotions and wayfinding information can be delivered from the same structure.
- Exhibition spaces: Dual-sided digital content can increase visibility in busy exhibition atriums.
- Public spaces: Commercial advertisements and public information can be presented according to viewing direction.
For example, in a commercial district, one side of the screen could display a restaurant promotion while the other side presents a retail campaign. In a scenic area, one surface could provide directional information while the opposite surface promotes local attractions.
How Should Businesses Choose the Right Display?
Selecting the right LED display requires matching technical specifications with the actual installation environment. Buyers should consider the following factors before placing an order:
- Viewing distance: Determine how far away the primary audience will be before selecting the pixel pitch.
- Ambient brightness: Outdoor installations exposed to direct sunlight generally require higher brightness.
- Installation method: Confirm whether the screen will be suspended or mounted on a pole.
- Structural load: Evaluate cabinet weight and the supporting structure before installation.
- Weather conditions: For outdoor locations, an appropriate IP protection rating is essential.
- Content requirements: Determine whether both sides need synchronized or independent content.
- Maintenance access: Plan for convenient module, power supply, and control-system servicing.
- Long-term operating costs: Consider power consumption, maintenance, replacement parts, and expected service life.
A professional supplier should also be able to provide project-specific recommendations rather than simply offering a standard screen configuration.
Why Consider Allenson for a Double-Sided LED Display?
Allenson independently develops and manufactures its Double-Sided LED Display and supports both standard and customized projects. According to its product information, the company maintains production and quality-control processes covering mold making, module soldering, cabinet assembly, testing, and shipment. :contentReference[oaicite:0]{index=0}
Quality assurance is particularly important for outdoor LED displays because failures can directly affect advertising continuity and operating costs. Allenson states that its displays undergo a 72-hour continuous power-on aging test before shipment, with defective modules screened during the process. :contentReference[oaicite:1]{index=1}
The company also provides project-oriented services including site surveys, structural and wiring solutions, installation, debugging, replacement parts, and after-sales support. Standard-sized products may be maintained in stock, while non-standard dimensions and special shapes can be manufactured according to project requirements. :contentReference[oaicite:2]{index=2}
For buyers looking for a Double-Sided LED Display supplier, these capabilities can be important when the project involves customized dimensions, suspended installation, independent content control, or large-scale commercial deployment.
Frequently Asked Questions
Can both sides of a Double-Sided LED Display show different content?
Yes. The Allenson Double-Sided LED Display supports independent content on its two viewing surfaces, allowing operators to display different advertising, promotional, or informational messages simultaneously. :contentReference[oaicite:3]{index=3}
Is a Double-Sided LED Display suitable for outdoor use?
Yes. The specified display has an IP65 protection rating and brightness of at least 5000 cd/m², making it designed for outdoor environments where dust, water exposure, and strong daylight are concerns. :contentReference[oaicite:4]{index=4}
What installation methods are supported?
The display can support suspended mounting and pole mounting. The appropriate method depends on the project location, structural conditions, display dimensions, and load-bearing requirements.
What is the pixel pitch of the Allenson model?
The standard Allenson Double-Sided LED Display described on the product page uses a 6 mm pixel pitch with a 1R1G1B full-color pixel configuration. :contentReference[oaicite:5]{index=5}
Can the display be customized?
Yes. Allenson states that it supports custom sizing and non-standard display configurations. Technical personnel can also conduct site surveys to develop installation, structural, and wiring solutions for specific projects. :contentReference[oaicite:6]{index=6}
Conclusion
A Double-Sided LED Display can transform a single installation point into a two-direction digital communication platform. With independent content control, high outdoor brightness, wide viewing angles, IP65 protection, modular construction, and flexible suspended or pole-mounted installation, it is particularly suitable for shopping malls, commercial districts, streets, scenic areas, parking facilities, and exhibition spaces. If you are planning a new digital signage project or need a customized solution for a specific installation environment, contact us to discuss your display size, viewing distance, installation requirements, content-control needs, and project specifications with Allenson's professional team.
